A2Billing 安裝篇

系統環境

Trixbox 2.6.2.3
A2Billing 1.3.4
CentOS Linux 5.3

檔案下載

A2Billing_1.3.4.tar.gz
http://www.asterisk2billing.org/down...g_1.3.4.tar.gz

PHP-PNCTL
http://dfn.dl.sourceforge.net/source...2.5.1.i386.rpm

開始安裝

// 安裝 php-pcntl

#>rpm -ivh php-pcntl-4.3.11-2.5.1.i386.rpm

Tips:

If you want to enable pcntl on Elastix 1.6.x, following these steps:

#>yum install php-devel
#>cd /usr/src
#>wget http://museum.php.net/php5/php-5.1.6.tar.gz
#>tar -xzf php-5.1.6.tar.gz
#>cd php-5.1.6/ext/pcntl
#>phpize
#>./configuere
#>make
#cp modules/pcntl.so /usr/lib/php/modules
#echo "extension=pcntl.so" > /etc/php.d/pcntl.ini
#service httpd restart

how to enable pcntl on php5
http://centos.org/modules/newbb/view...forumpost83973

// 解壓安裝檔

#>mkdir a2billing_install
#>tar -xzf A2Billing_1.3.4.tar.gz -C a2billing_install

// 安裝 A2Billing 資料庫

#>cd a2billing_install/DataBase/mysql/Mysql-5.x/
#>echo "GRANT ALL PRIVILEGES ON *.* TO 'a2billinguser'@'localhost' IDENTIFIED BY 'a2billing' WITH GRANT OPTION;" | mysql -uroot -ppassw0rd
#>mysqladmin create mya2billing -u a2billinguser -pa2billing
#>mysql -ua2billinguser -pa2billing mya2billing < a2billing-mysql-schema-MYSQL.5.X-v1.3.0.sql

// 安裝 Web UI

#>cd ../
#>cd ../
#>cd ../
#>cp -a A2Billing_UI/ /var/www/html
#>cp -a A2BCustomer_UI/ /var/www/html

// 安裝 A2Billing 設定檔

#>cp a2billing.conf /etc/asterisk

// 安裝 AGI

#>cd A2Billing_AGI
#>cp -a a2billing.php libs_a2billing/ /var/lib/asterisk/agi-bin

// 安裝語音檔

#>cd ../
#>cp -a addons/sounds/* /var/lib/asterisk/sounds/

// 設定 IAX 及 SIP conf 檔

#>cd /etc/asterisk
#>touch additional_a2billing_iax.conf
#>touch additional_a2billing_sip.conf
#>touch extensions_a2billing.conf

// 設定目錄權限

#>chmod 664 /etc/asterisk/a2billing.conf
#>chmod 664 /etc/asterisk/additional_a2billing_iax.conf
#>chmod 664 /etc/asterisk/additional_a2billing_sip.conf
#>chmod 664 /etc/asterisk/extensions_a2billing.conf

#>chown -R asterisk:asterisk /etc/asterisk/*
#>chown -R asterisk:asterisk /var/www/html/*
#>chown -R asterisk:asterisk /var/lib/asterisk/*

// 設定 A2Billing.conf
#>vi /etc/asterisk/a2billing.conf

[database]
hostname = localhost
port = 5432
user = a2billinguser
password = a2billing
dbname = mya2billing
;dbtype = postgres
dbtype = mysql

; MANAGER CONNECTION PARAMETERS
manager_host = localhost
manager_username = a2billinguser
manager_secret = a2billing

// 設定 Asterisk Manager Interface

#>vi /etc/asterisk/manager_custom.conf

[a2billinguser]
secret=a2billing
deny=0.0.0.0
permit=127.0.0.1/255.255.255.0
read=system,call,log,verbose,command,agent,user
write=system,call,log,verbose,command,agent,user

// Include 設定檔

#>vi /etc/asterisk/sip.conf

;for A2Billing
#include additional_a2billing_sip.conf

#>vi /etc/asterisk/iax.conf

;for A2Billing
#include additional_a2billing_iax.conf

#>vi /etc/asterisk/extensions_custom.conf

#include extensions_hud.conf
;for A2Billing
#include extensions_a2billing.conf

// 設定 A2Billing Context

#>vi /etc/asterisk/extensions_a2billing.conf

[a2billing]
exten => _X.,1,Answer
exten => _X.,n,Wait(1)
exten => _X.,n,DeadAGI(a2billing.php|1)
exten => _X.,n,Hangup

註：a2billing.php 後方的 1，這是對應 a2billing.conf 的 [agi-conf1] 參數，若有多個 AGI 設定項，若是 agi-conf2 應該修改為 (a2billing.php|2)。

重啟 Asterisk 服務，套用所有新的設定。

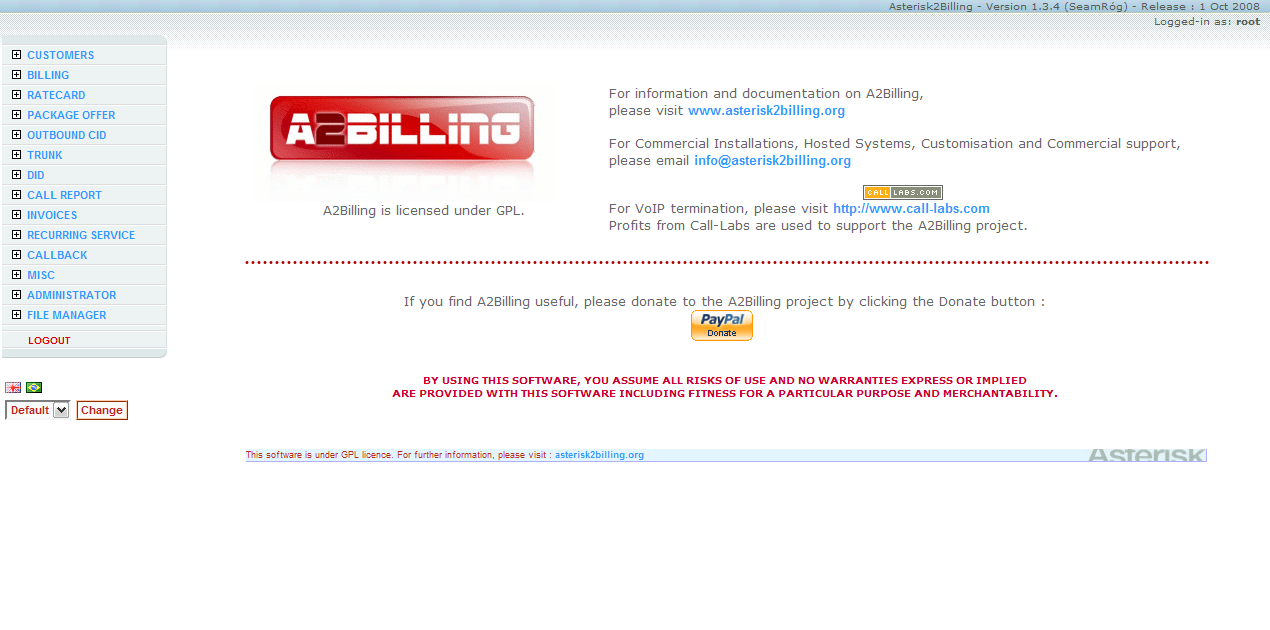

設定 A2Billing UI

打開瀏覽器，輸入 http://10.10.10.104/A2Billing_UI/，登入帳號：root, 密碼：myroot
